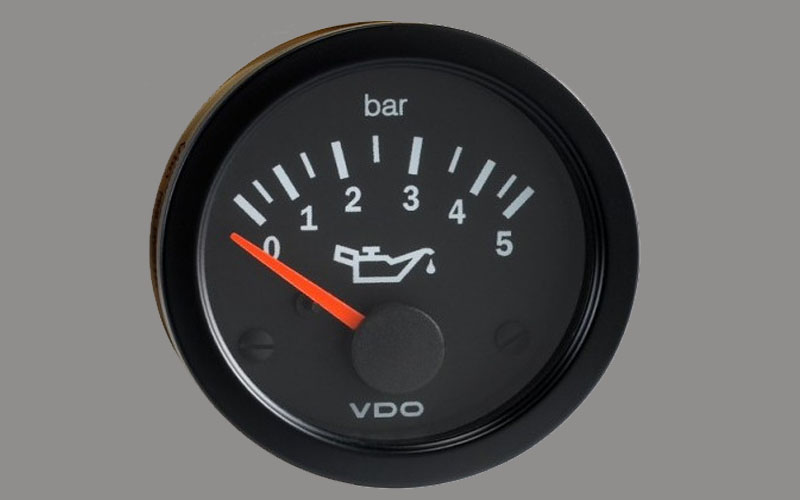

Vision Engine oil pressure gauge
The VDO Vision Engine Oil Pressure Gauge is a premium instrument designed to provide precise monitoring of engine oil pressure. Featuring a clear and easy-to-read dial, this gauge offers accurate readings, helping to ensure optimal engine performance and longevity. Its sleek design and reliable construction make it suitable for a variety of automotive applications. With the VDO Vision Engine Oil Pressure Gauge, you can keep a close eye on your engine's health, preventing potential issues and maintaining smooth operation.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 0 to 5 Bar
- Operating voltage: 12 Volt DC
- Retail package 1 Pressure gauge
- Clamp ring
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
67.5 mm |
| Locking height with Spinlock nut: |
Not available |
| Locking height with bracket: |
0.5 mm - 8 mm |
| Flushmount: |
None |
Functionality:
| Engine oil pressure range: |
0 to 5 Bar |
| Sensor signal engine oil pressure gauge: |
VDO Pressure sender 10 to 184 Ohm |
| Accuracy: |
Not specified by VDO |
| Connection: |
AMP Male blade connector 6,3 x 0,8mm (3x) |
| Illumination connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage: |
11 - 16 Volt DC |
| Current consumption without illumination: |
82 mA |
| Reverse polarity protection: |
Yes |
| Short circuit protection: |
Not specified by VDO |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Backlight 12V - 2 Watt White - Green - Red and 24V - 2 Watt - Optional |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
None |
Design:
| Model: |
Cockpit Vision |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-30°C to +85°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit Vision 350 010 008K Pressure gauge
- Steel bracket zinc-plated and chromatized
- Connecting material order separately
