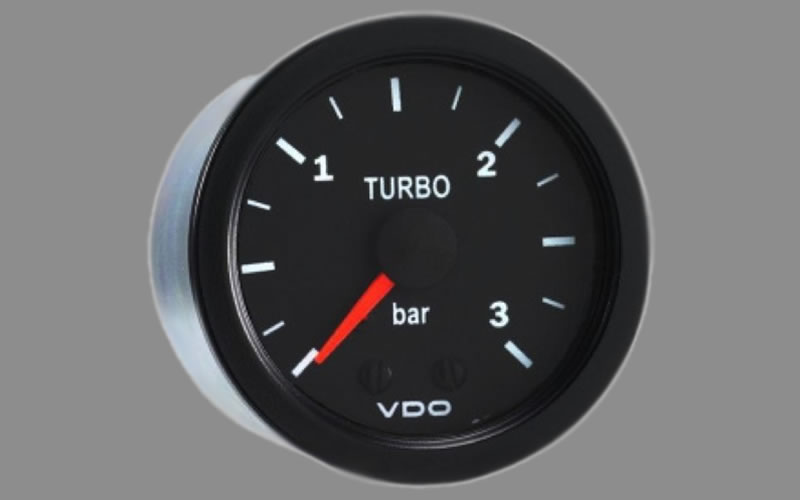

Turbo Boost Gauge 0 tot 3Bar
The VDO Turbo Boost Gauge 0 to 3 Bar is a high-precision instrument designed to measure turbocharger boost pressure within a range of 0 to 3 Bar. Featuring a clear, easy-to-read display, this gauge provides accurate and reliable readings essential for monitoring turbo performance. Ideal for high-performance vehicles, it helps optimize engine efficiency and prevent potential overboost issues. Combining durable construction with a sleek design, the VDO Turbo Boost Gauge 0 to 3 Bar is an essential tool for any turbocharged engine setup.
Specification:
- Colour: Black
- Panel hole diameter: 52 mm - 2 1/16"
- Range: 0 to 3 Bar Mechanical
- Connection: M12 x 1.5
- Retail package 1 Pressue gauge
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: |
52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: |
67.5 mm |
| Locking height with Spinlock nut: |
Not available |
| Locking height with bracket: |
0.5 mm - 8 mm |
| Flushmount: |
None |
Functionality:
| Oil pressure range: |
0 to 3 Bar |
| Sensor signal oil pressure gauge: |
Mechanical - Connection M12 x 1.5 |
| Accuracy: |
Not specified by VDO |
| Connection: |
M12 x 1.5 |
| Illumination connection: |
AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage (Illumination only): |
12 Volt standard - 24 Volt optional |
| Current consumption (Illumination only): |
12 Volt 2 Watt - 24 Volt 2 Watt |
| Reverse polarity protection: |
Not applicable |
| Short circuit protection: |
Not applicable |
Dial & Pointer:
| Deflection angle: |
90° |
| Dial colour: |
Black |
| Dial Illumination: |
Backlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: |
Red backlight |
| Warning indication: |
None |
| Programming: |
None |
Design:
| Model: |
Cockpit Vision |
| Lens: |
Single - Anti-glare |
| Standard bezel: |
Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: |
IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: |
IP42 (DIN 40050) |
| Relative humidity: |
Not specified by VDO |
| Operating temperature: |
-30°C to +85°C |
| CE standard: |
Yes |
| DNV GL Certification: |
Not specified by VDO |
| Mechanical shock 8 hours: |
Max: 1G - 25Hz - 2000Hz |
| EMC test: |
According to EN 13309 and ISO 13766 |
| Nominal position: |
NL 0 to NL 90 - DIN 16257 |
| Housing: |
Plastic flame retardant |
Retail package:
- VDO Cockpit Vision 150 015 001K Pressure gauge
- Steel bracket zinc-plated and chromatized
- Connecting material order separately
